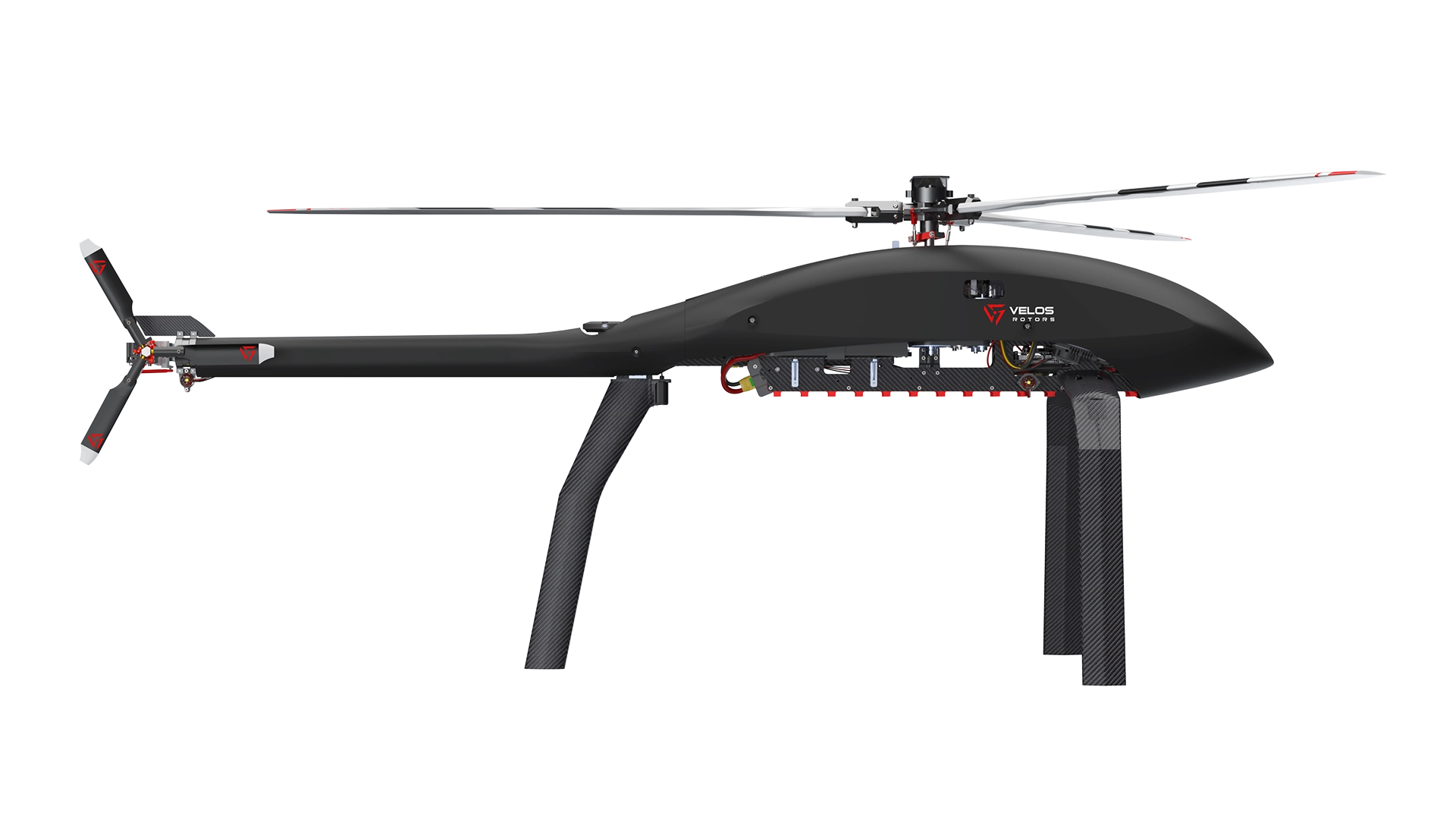

black white VELOS V3 VELOS v3

VELOS ROTORS

VELOS V3

i 3 Table Of Content

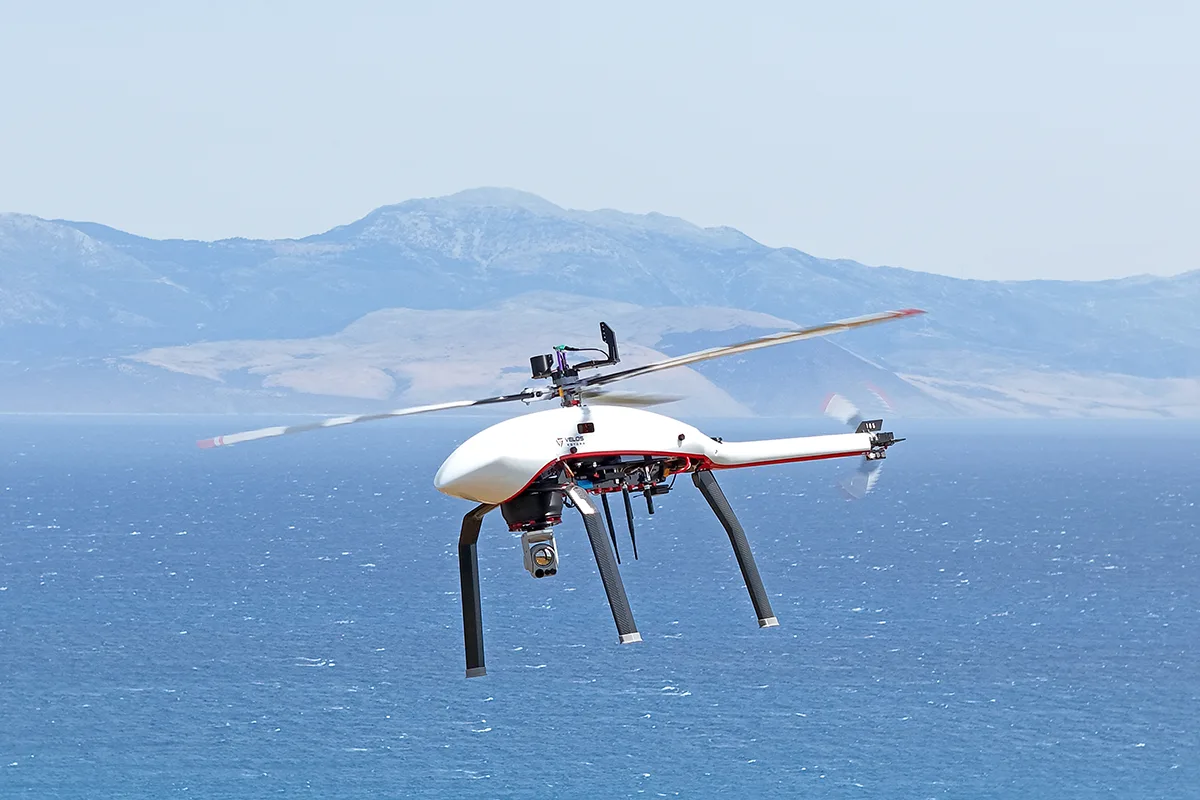

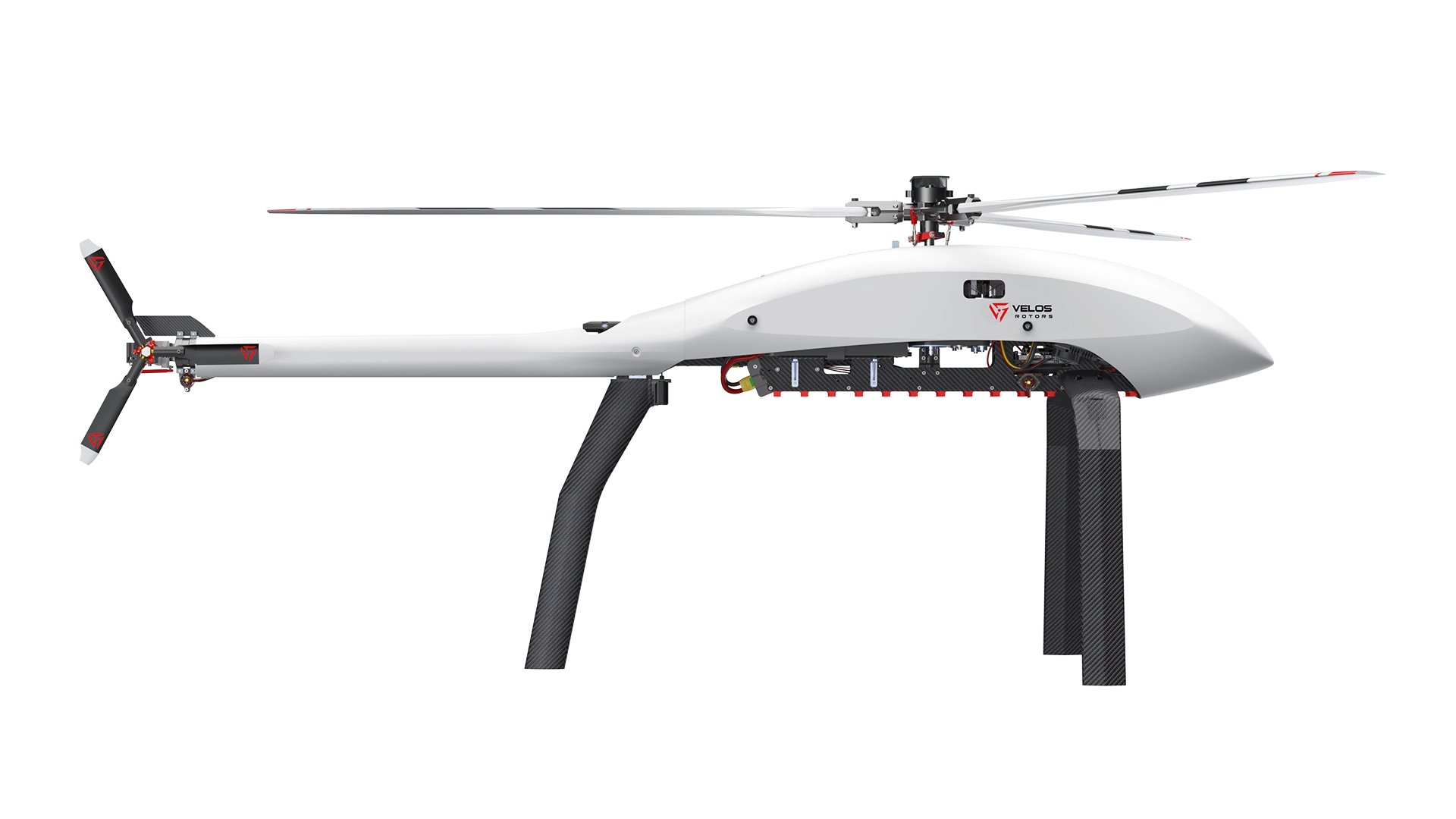

Velos Rotors proudly presents the Velos V3, the latest evolution in our line of UAVs. Velos V3 is a Group II unmanned helicopter (25 kg / 55 lbs) designed with a traditional rotorcraft configuration, offering versatility and reliability for a wide group of applications.

The Velos V3 features a three-bladed main rotor and a three-bladed tail rotor, supported by a durable carbon fiber fuselage with both forward and aft canopy covers. It is equipped with a three-leg landing gear system and is powered by 4 high-voltage lithium polymer battery packs (48VDC). Velos V3 utilizes a patented twin transmission design that sets a new industry standard for redundancy, reliability and safety.

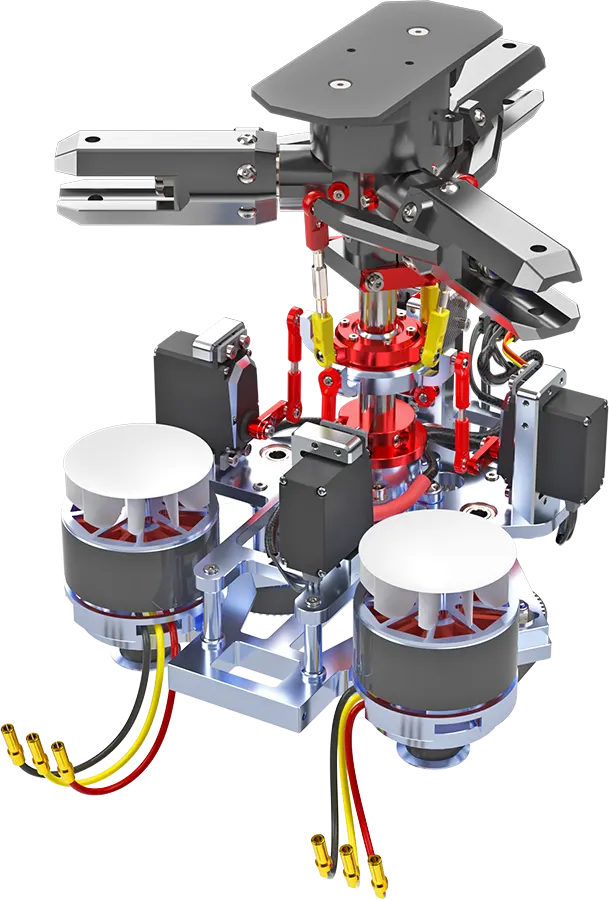

Fully Redundant Twin Transmission Design

Unlike most UAV helicopters that are built with common hobby-grade parts, the Velos V3 was designed from scratch with three core objectives:
Simplicity, Efficiency, Reliability.

The patented, highly innovative twin transmission renders Velos V3 the only UAV helicopter in its class capable of tolerating a complete failure of critical components, including motor, ESC, belt, gears, bearings, main battery and servo, while still enabling a safe landing to protect both payload and surroundings under those circumstances. The system automatically isolates the faulty component without introducing additional drag to the operational part of the drivetrain. Furthermore, the key advantage of this configuration is that all critical components operate at only 50% of their maximum capacity, making the Velos V3 an exceptionally reliable aircraft.

kataskeuh-istoselidas-responsive

Customization and compatibility

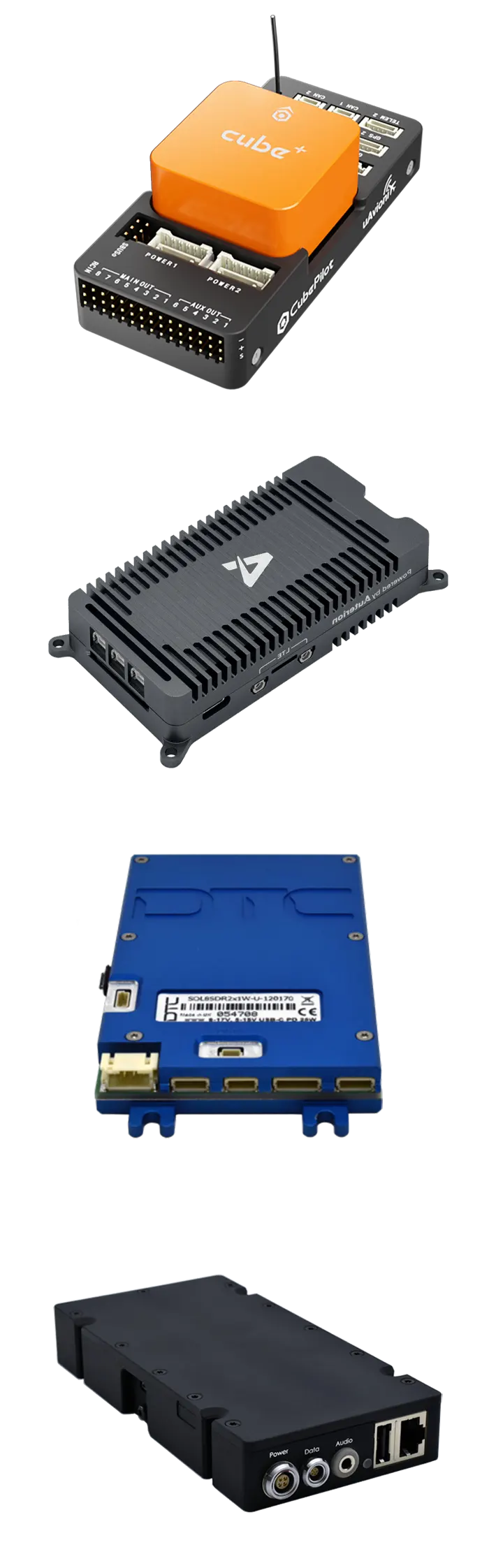

Our UAV is using CubePilot OrangeCube by default and can be configured with Auterion SkyNode flight controller if needed. Based on open architecture (Orange cube or Auterion) enables quick integration of additional hardware or software so that new capabilities can be rapidly deployed across the fleet and managed by operators through the same UX/UI and basic workflows. Velos V3 architecture also supports a variety of industry-leading data links that are ready for plug-and-play integration. From simple C2 operation to advanced encrypted mesh networks capable of streaming HD video together with flight data and sensor information in real-time the possibilities are endless.

Last but not least LTE, 5G and satellite module compatibility provides extended range and data failover capabilities ideal for BVLOS operations. We are offering various options at 850-900Mhz, 1.4Ghz, 2.4Ghz and 5.8Ghz bands. Our helicopter is controlled through a simple ground control station, which can be a laptop coupled with an RC unit or a unified rugged GCS solution, providing operators with an intuitive and effective means of managing the aircraft. The Velos V3 on the default configuration is compatible with the Mission Planner and the UgCS flight control software from SPH Engineering. Together we can configure your Velos V3 according to your needs.

kataskeuh-istoselidas-responsive

Extensive range of payload capabilities

VELOS V3 PAYLOADS

The Velos Rotors V3 offers an extensive range of payload capabilities, from sensor operations to critical cargo transportation. Its simple payload rail system with a length of 55cm features M4 threaded mounting points every 40mm. This design allows seamless integration of a wide variety of payloads or sensor packages that fit within the physical dimensions of the payload area.
The following examples showcase various popular payload configurations that the Velos V3 is performing exceptionally well. Of course the aircraft is able to carry almost any payload that weighs less than 10kg. For custom integrations please contact us.

3

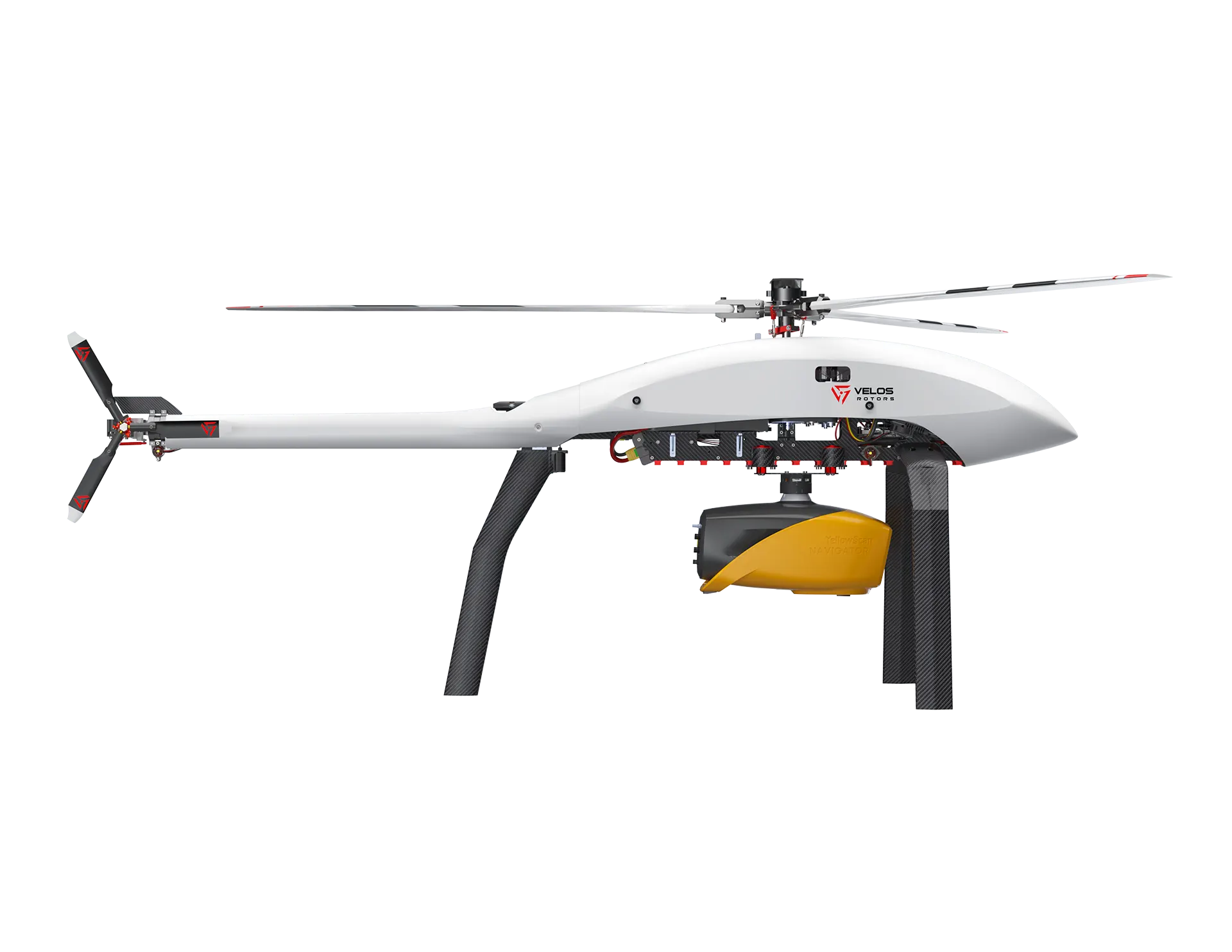

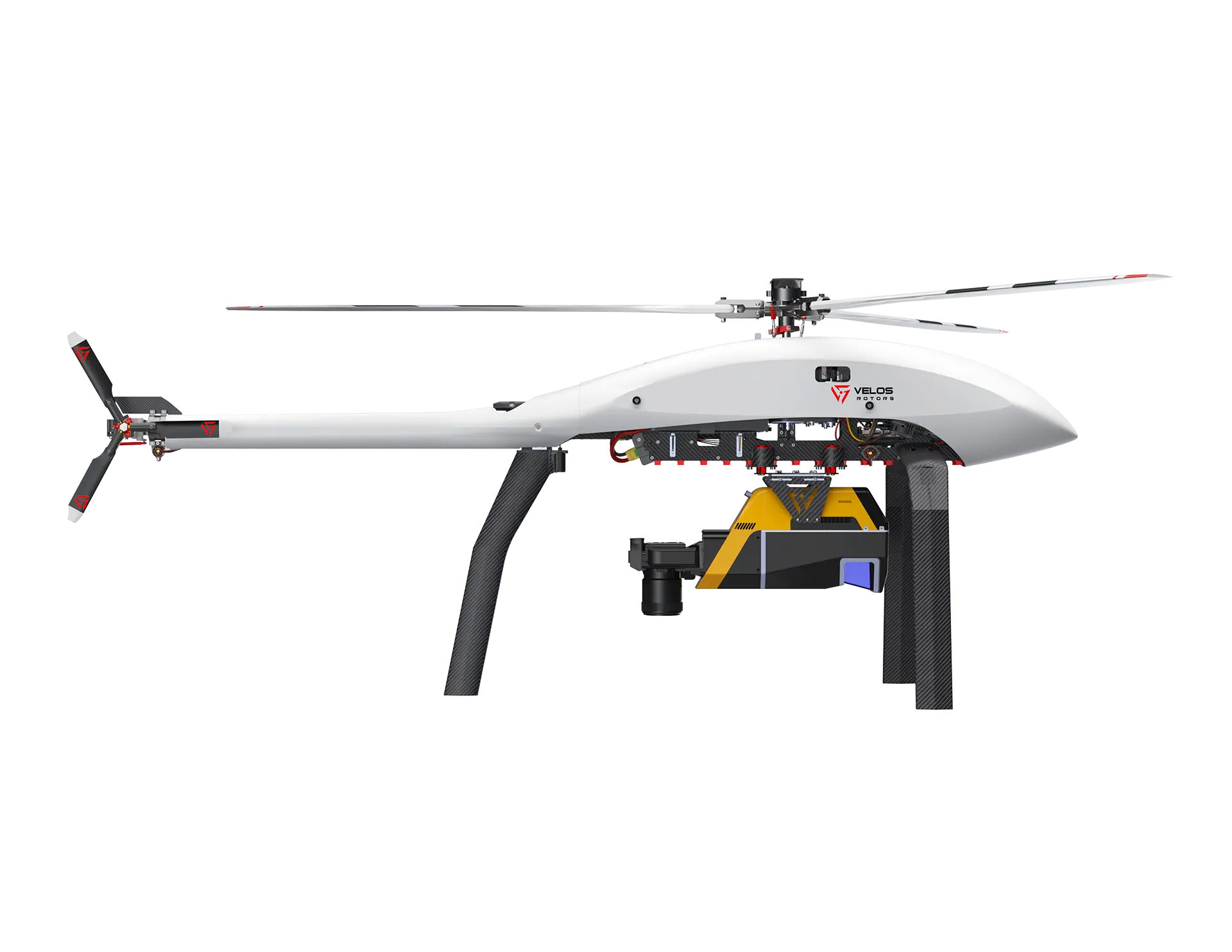

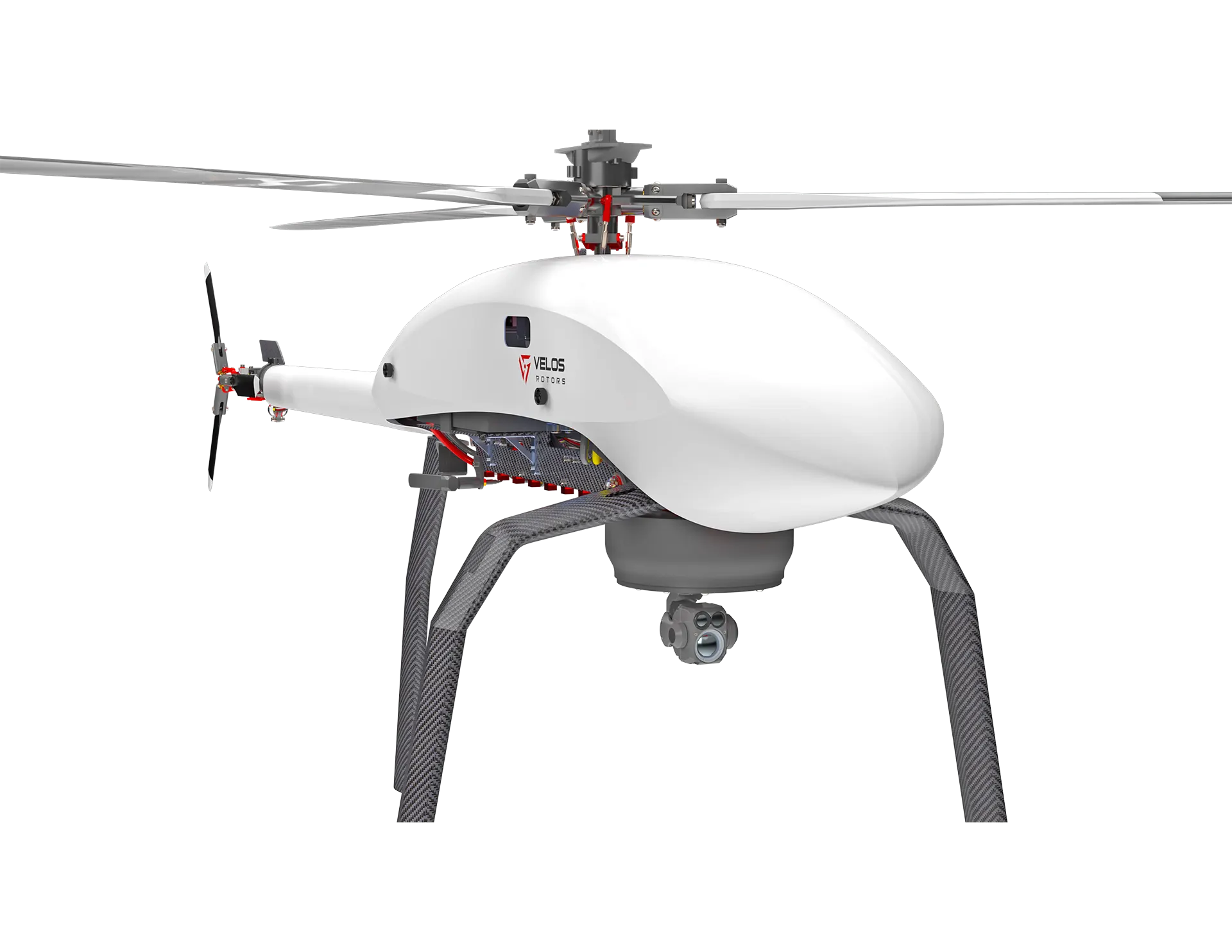

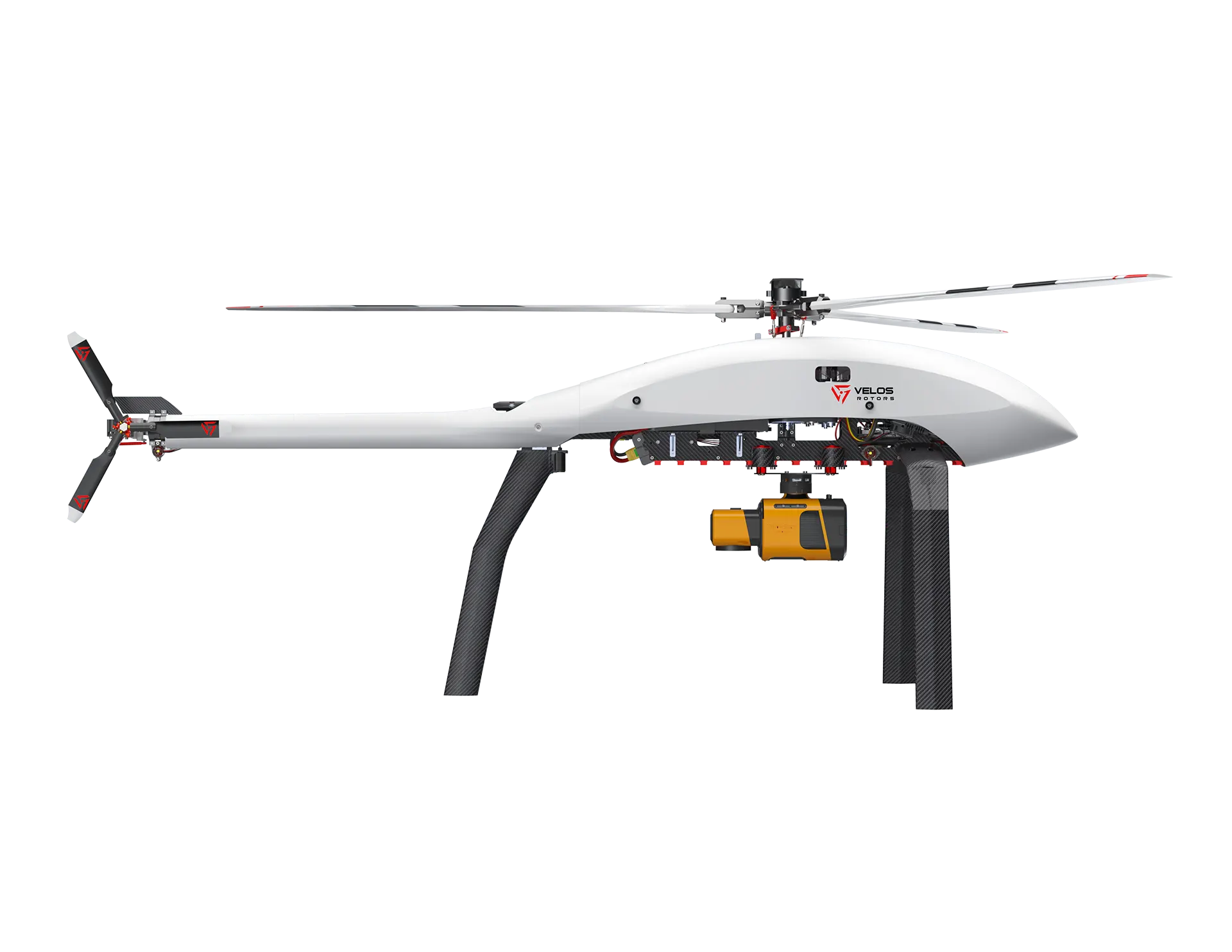

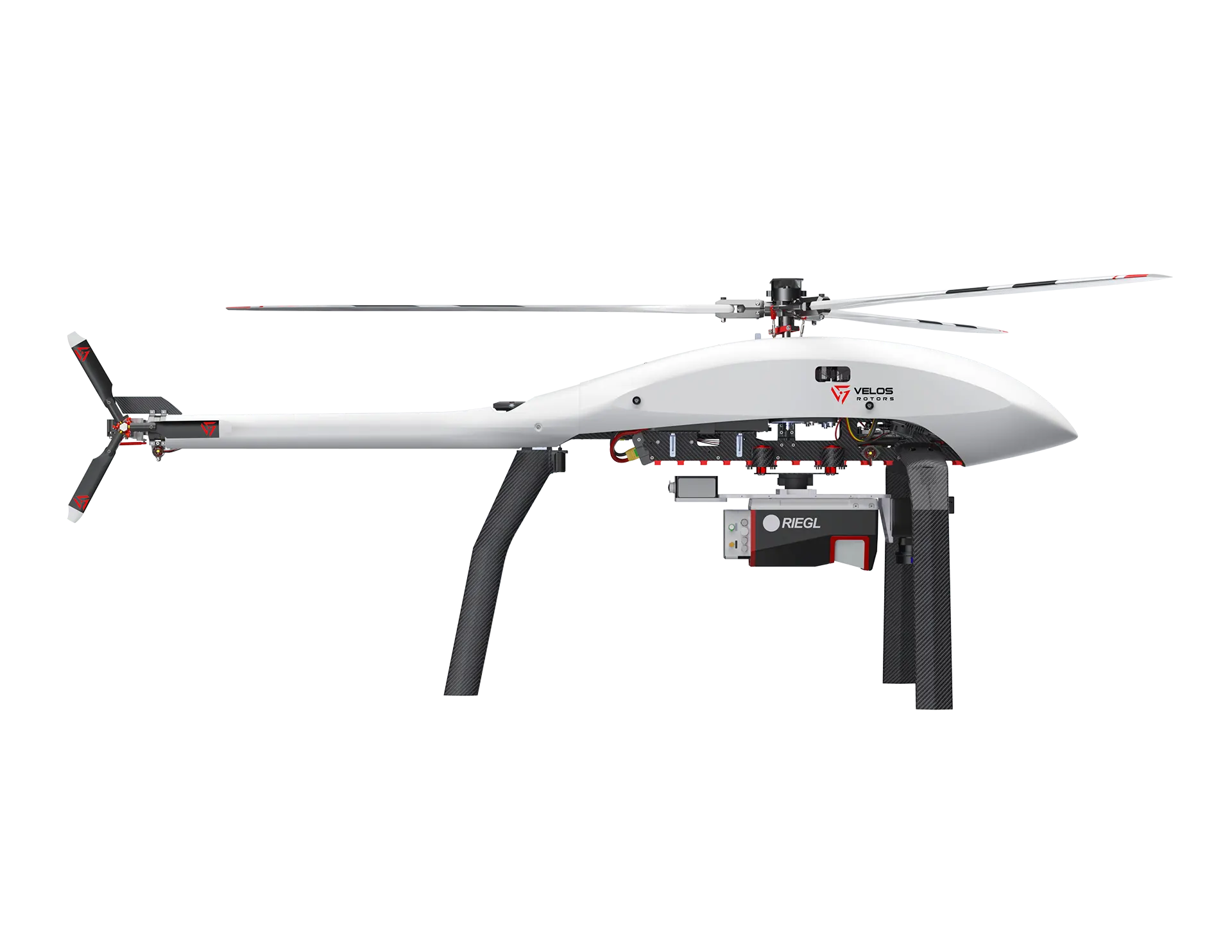

Phaseone IXM 100 Riegl VUX 100 Riegl VUX 120 Riegl VUX 160 Yellowscan Mapper Yellowscan Navigator Yellowscan Voyager Sony A7R Nextvision Raptor Nextvision Starling Nextvision X80

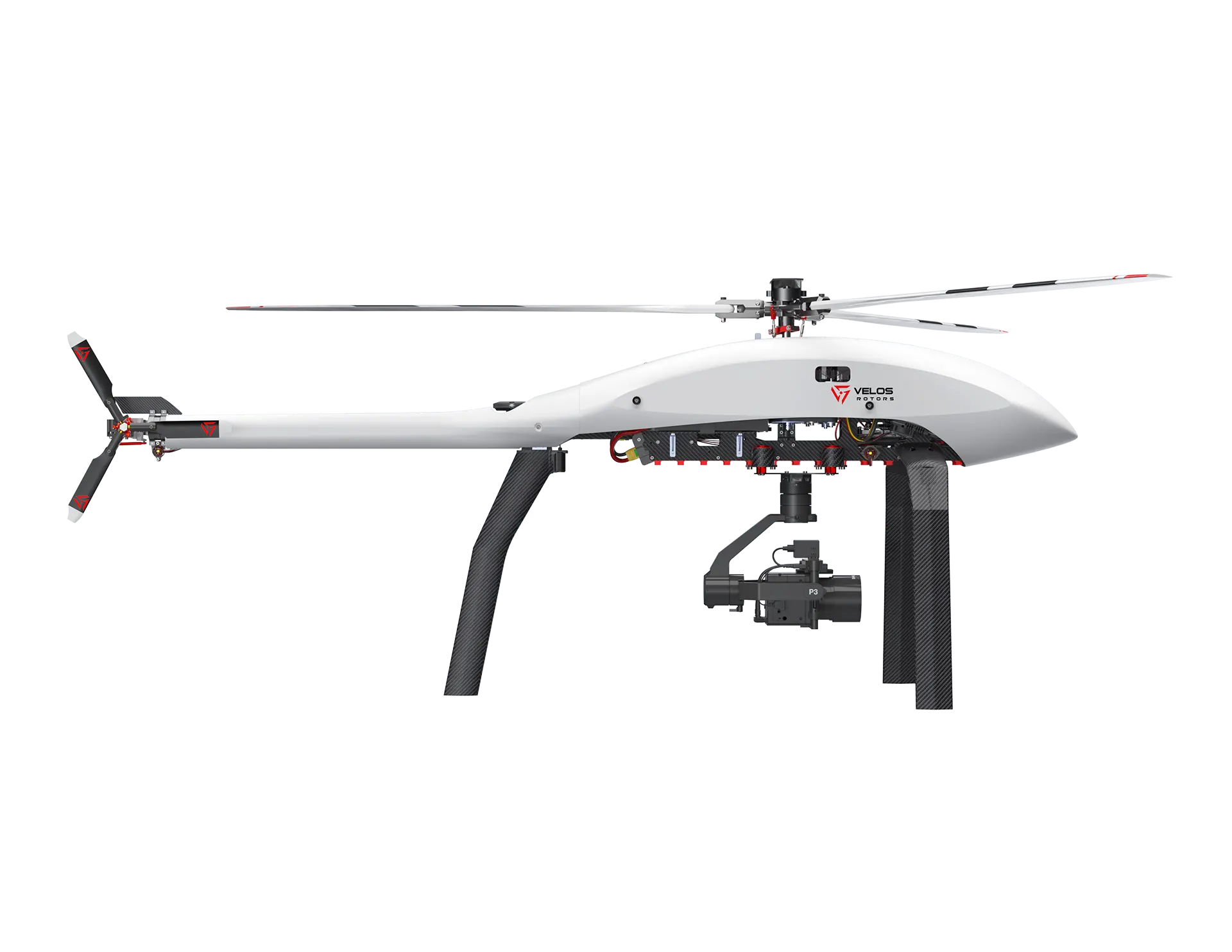

Phaseone IXM 100
Riegl VUX 100 Riegl VUX 120 Riegl VUX 160 Yellowscan Mapper Yellowscan Navigator Yellowscan Voyager Sony A7R Nextvision Raptor Nextvision Starling Nextvision X80

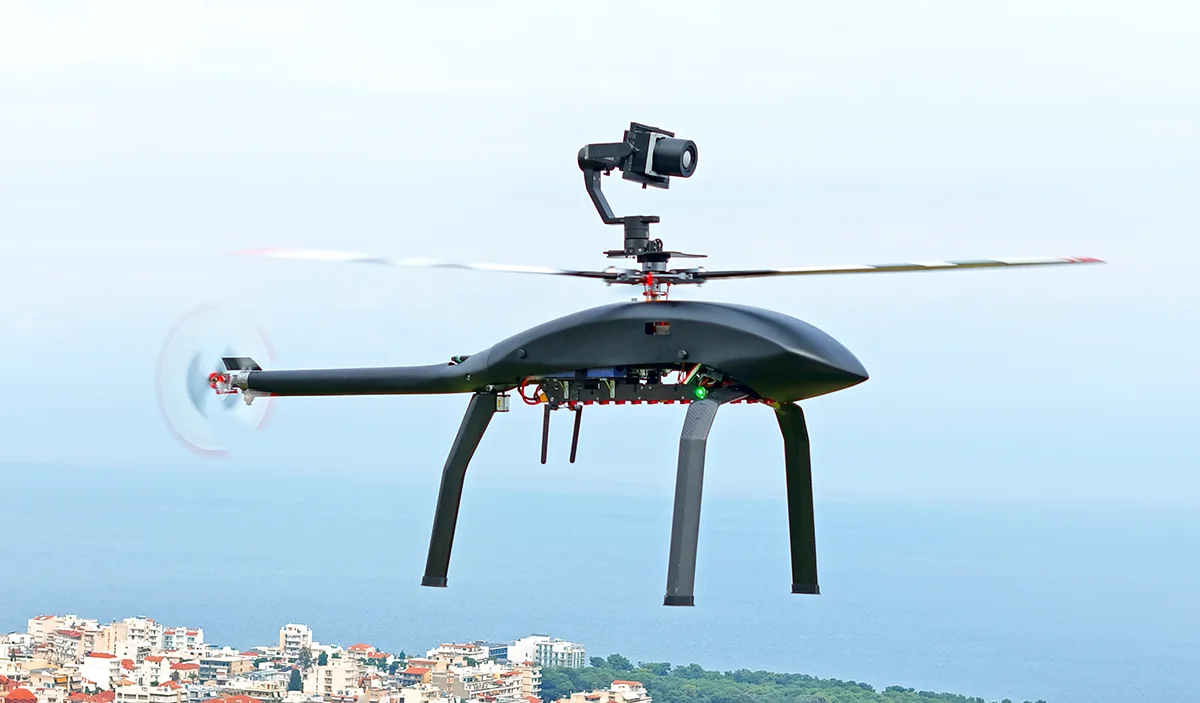

Payload Over the Rotor (POR)

The Velos V3 also provides a unique capability of carrying a Payload Over the Rotor (POR), allowing end-users to install payloads, antennas, sensors or a parachute above the main rotor system. This is also the ideal place for GNSS antennas for Lidar surveying. The POR is located on the center of gravity (CG) axis, so any payload integrated there does not affect the CG or other flight parameters.

Furthermore, the unobstructed 360º and sky views allow different configurations, such as a 360º panoramic view camera or a dual camera (one on the POR and the second one below the helicopter main body). This capability makes the Velos V3 the ideal system to perform detailed inspections in high-difficulty areas (e.g. below a bridge, in complex constructions, etc.), or filming challenging movie scenes.

Learn more about Velos V3

Contact us for more information

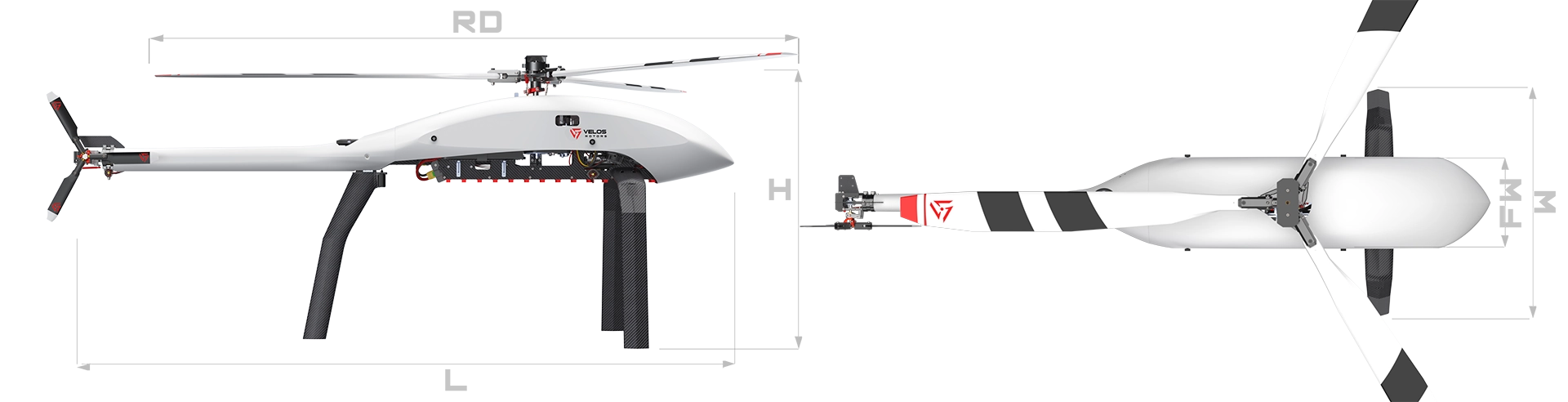

Physical Specifications
Performance Specifications
Key Features
Rotor diameter RD
198cm / 76.5in
Rotor diameter RD
Length L
198cm / 76.5in
172cm / 67.7in
Rotor diameter RD
Height H
198cm / 76.5in
74cm / 28.75in *depends on POR payload
Rotor diameter RD
Width W
198cm / 76.5in
62cm / 24.4in
Rotor diameter RD
Fuselage Width
198cm / 76.5in
24cm / 9in
Rotor diameter RD
Empty Weight
198cm / 76.5in
9kg / 20lbs
Rotor diameter RD
Battery Weight
198cm / 76.5in
5-15kg / 11-33lbs
Rotor diameter RD
Payload Weight
198cm / 76.5in
0.5-10kg 2-22lbs

Payload Capacity

10kg / 22lbs

Payload Capacity

MTOW

10kg / 22lbs

25kg+ / 55lbs+

Payload Capacity

Cruise Speed

10kg / 22lbs

32-65 KPH | 9-18 m/s

Payload Capacity

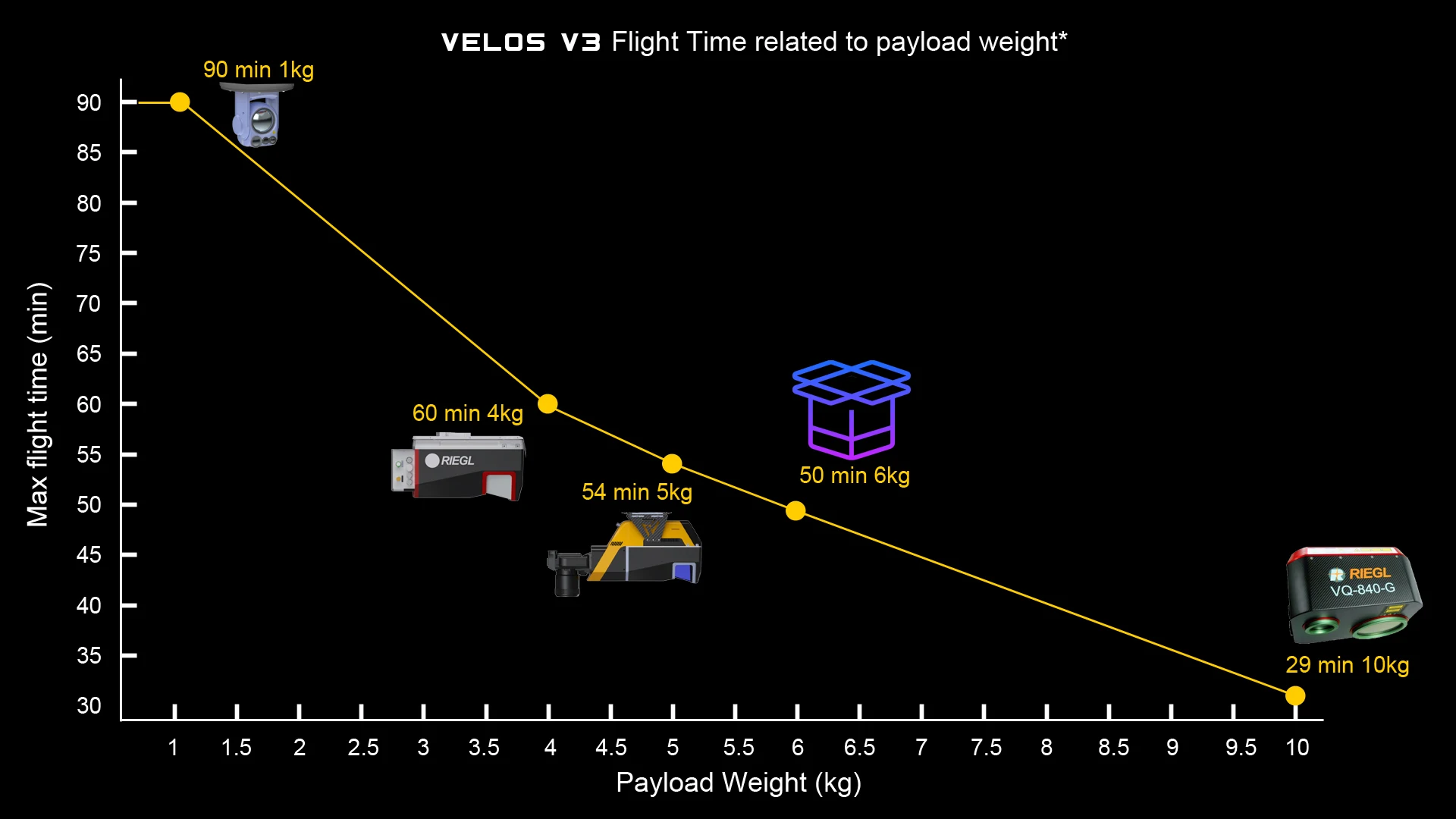

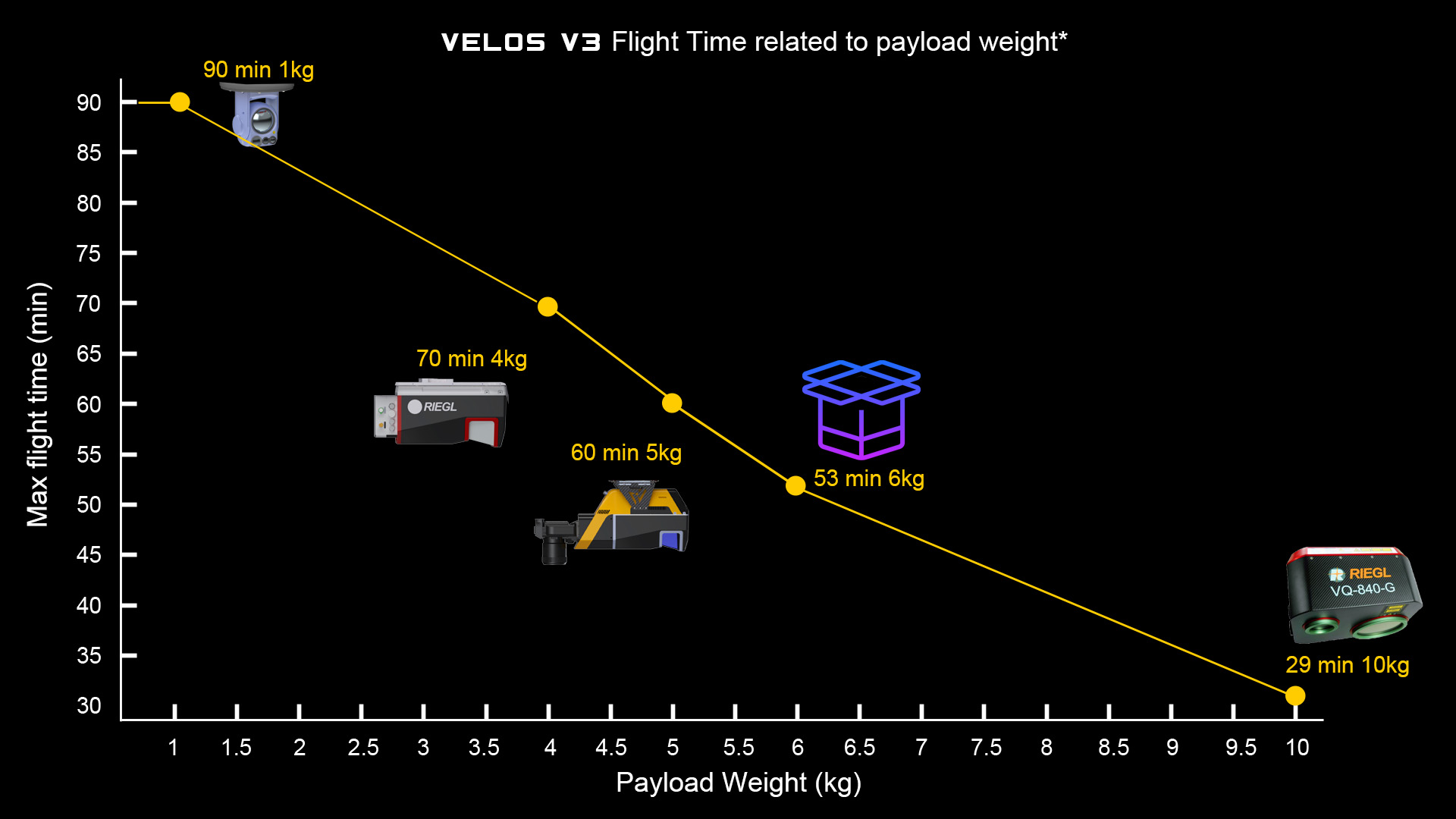

Endurance

10kg / 22lbs

20 to 80+ minutes

Payload Capacity

Endurance with 4kg

10kg / 22lbs

50 minutes

Payload Capacity

Endurance with 5kg

10kg / 22lbs

45 minutes

Payload Capacity

Min/Max Speed

10kg / 22lbs

0-90KPH / 0-25 m/s

Payload Capacity

Flight ceiling

10kg / 22lbs

14000ft / 4260m

Some of its key features are:

  • Automatic take-off /  landing / autonomous missions.
  • Preparation / Deployment in less than 5 minutes.
  • Navigation in GPS – denied environment.
  • Resilience to the sea-water environment, stainless steel hardware.
  • Resilient to extreme temperatures / wind gusts and severe weather conditions.

You Trust. We Deliver.

With thousands of flight hours accumulated across the globe, the Velos platform has matured into a trusted and reliable solution within the commercial industry. Our ability to deliver high-quality, reliable, dual-use unmanned helicopter systems to the market is further supported by a strong foundation of exclusive commercial sales and long-term vendor relationships, ensuring a stable and secure supply chain.
